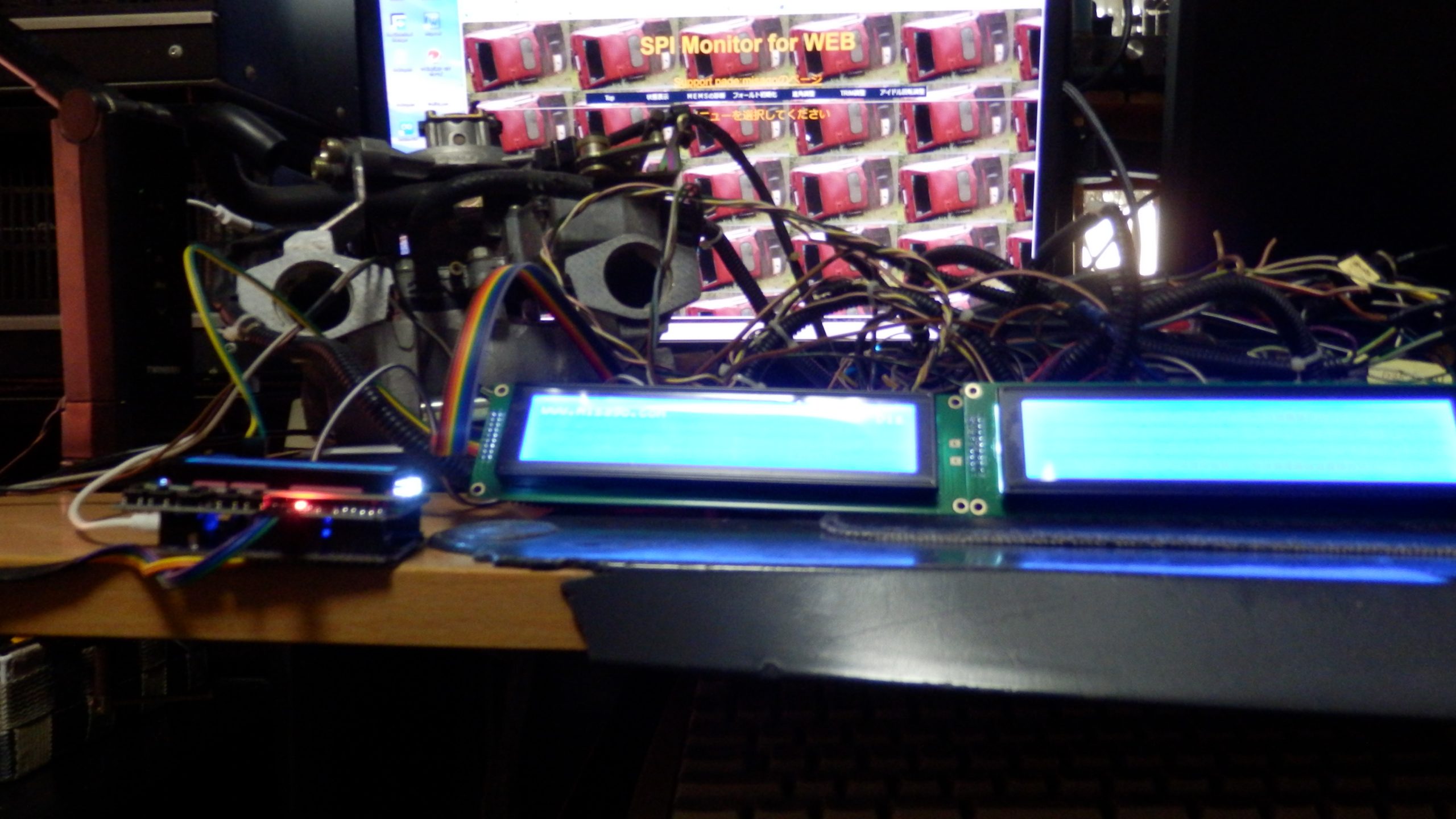

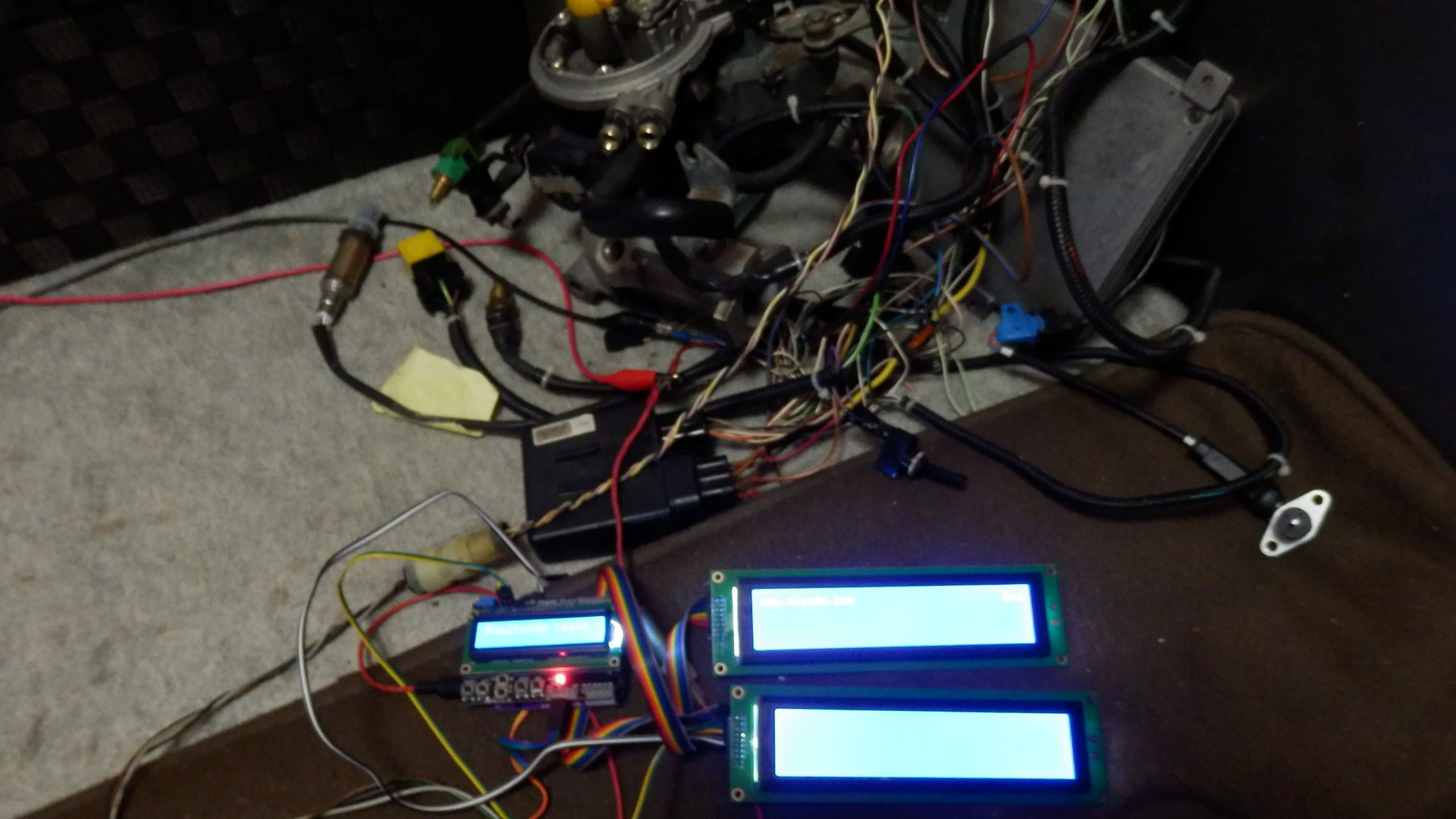

LCDKEYSHILEDと40X4LCDパネル使ったSPI MONITORを作った。

/*
* This code is created by www.misago.com
*
* All original source code in this repository is Copyright (C) 2024 HATI
*
* For more detail (instruction and wiring diagram), visit https://www.misago.com
*/
#define LCD40X4 1
#define ESP32S3 1
#define LCDKEY 1
#define AP_Mode
//#define OLEDESP 1

#include <WiFi.h>
#include <ESPAsyncWebSrv.h>
#include <LittleFS.h>
#include <Wire.h>

#if defined(OLEDESP)
#include <Wire.h> // I2C ライブラリ
#include <Adafruit_GFX.h> // グラフィックのコア・ライブラリ
#include <Adafruit_SH110X.h> // 1.3インチ OLED
#include "AiEsp32RotaryEncoder.h"
#endif

#if defined(LCDKEY)
#include <LiquidCrystal.h>
#endif

#if defined(LCD40X4)
#include <pgmspace.h>
#include <LiquidCrystal_I2C_4004.h>
#define xpos 20
#define ypos 1
#else
#include <LCD_I2C.h>
#define xpos 0
#define ypos 0
#endif

#define ModelNum 5
#define COMMAND80 29
#define COMMAND7D 33
#define COMMANDD0 5
#define NOTEST 0
#define STEPPINGFINISHNG 1
#define STEPPINGFINISHOK 2
#define FUELPUMPFINISHNG 3
#define FUELPUMPFINISHOK 4
#define ACRELAYFINISHNG 5
#define ACRELAYFINISHOK 6
#define O2HEATERFINISHNG 7
#define O2HEATERFINISHOK 8
#define PTCRELAYFINISHNG 9
#define PTCRELAYFINISHOK 10
#define PURGEVALVEFINISHNG 11
#define PURGEVALVEFINISHOK 12

#define STEPPINGNUM 20
#define FUELPUMPNUM 21
#define ACRELAYNUM 22
#define O2HEATERNUM 23
#define PTCRELAYNUM 24
#define PURGEVALVENUM 25

#if defined(OLEDESP)
#define I2CSDA 21
#define I2CSCL 22
#define UARTTX 17 //ESP32
#define UARTRX 16 //ESP32
/*
connecting Rotary encoder
Rotary encoder side MICROCONTROLLER side
------------------- ---------------------------------------------------------------------
CLK (A pin) any microcontroler intput pin with interrupt -> in this example pin 16
DT (B pin) any microcontroler intput pin with interrupt -> in this example pin 14
SW (button pin) any microcontroler intput pin with interrupt -> in this example pin 13
GND - to microcontroler GND
VCC microcontroler VCC (then set ROTARY_ENCODER_VCC_PIN -1)
***OR in case VCC pin is not free you can cheat and connect:***
VCC any microcontroler output pin - but set also ROTARY_ENCODER_VCC_PIN 25
in this example pin 25
*/
#define ROTARY_ENCODER_A_PIN 27
#define ROTARY_ENCODER_B_PIN 26
#define ROTARY_ENCODER_BUTTON_PIN 25
#define ROTARY_ENCODER_BACK_BUTTON_PIN 33
#define ROTARY_ENCODER_COMFIRM_BUTTON_PIN 32
#define ROTARY_ENCODER_VCC_PIN -1 /* 27 put -1 of Rotary encoder Vcc is connected directly to 3,3V; else you can use declared output pin for powering rotary encoder */
//depending on your encoder - try 1,2 or 4 to get expected behaviour
//#define ROTARY_ENCODER_STEPS 1
//#define ROTARY_ENCODER_STEPS 2
#define ROTARY_ENCODER_STEPS 4
#define OLED_I2C_ADRS 0x3C // I2C address of OLED
#define Wire1_SDA 13
#define Wire1_SCL 14
struct Button {
const uint8_t PIN;
bool pressed;
uint32_t lastMillis;
};
Button button1 ={ ROTARY_ENCODER_BACK_BUTTON_PIN,false,0};
Button button2 ={ ROTARY_ENCODER_COMFIRM_BUTTON_PIN,false,0};

#else
#if defined(ESP32S3)
#define I2CSDA 9
#define I2CSCL 8
#define UARTTX 16 //ESP32-S3
#define UARTRX 15 //ESP32-S3
#else
#define I2CSDA 21
#define I2CSCL 22
#define UARTTX 15 //ESP32
#define UARTRX 17 //ESP32
#endif
#endif

#if defined(LCDKEY)||defined(OLEDESP)
#define KEYRIGHT 0
#define KEYUP 1
#define KEYDOWN 2
#define KEYLEFT 3
#define KEYSELECT 4
#define KEYNONE 5
#define KEYERR 6
#endif

#if defined(LCDKEY)
#define KEY_AD 2 // analog input oprt
// A/D input Threshold
#define THRIGHT 159
#define THUP 700
#define THDOWN 1100
#define THLEFT 1600
#define THSELECT 2100
#define THNONE 2300

#if defined(ESP32S3)
/* LCD Assign ESP32-S3 UNO */
#define LCD_RS 21
// #define LCD_RW // GND
#define LCD_EN 46
#define LCD_D4 19
#define LCD_D5 20
#define LCD_D6 3
#define LCD_D7 14
#else
/* LCD Assign ESP32 */
#define LCD_RS 19
// #define LCD_RW // GND
#define LCD_EN 14
#define LCD_D4 18
#define LCD_D5 5
#define LCD_D6 17
#define LCD_D7 16
#endif
#endif

AsyncWebServer server(80);

// AP mode
#ifdef AP_Mode
const IPAddress ip(192, 168, 5, 10); // *** set any addr ***
const IPAddress subnet(255, 255, 255, 0);
const char* ssid = "MEMS";
const char* password = "MiniDeto";
//WIFI station mode
#else
const char *ssid = "XXXXXXXX";
const char *password = "XXXXXXXXXXXX";
#endif

#if defined(LCDKEY)
/*********************/
/*　Keypad 入力処理 */
/*********************/
int lastTimekey=KEYNONE;
int firstitem=0;
int seconditem=0;
int position=0;
const char firstitems[][17] = {"Faultcode reset " , "HW TEST " , "Adjust TRIM " , "Adjust IdelSpeed" , "Adjust ignition " };
const char hwtestitems[][17]= {"Stepping Motor " , "Fuelpump TEST " , "AC Relay TEST " , "O2Heater TEST " , "PTC Relay TEST ","PurgeValve TEST" };

const struct {
short dat; // A/D入力閾値
int ret; // 戻り値
} t_key[5] = {
{ THRIGHT , KEYRIGHT },
{ THUP , KEYUP },
{ THDOWN , KEYDOWN },
{ THLEFT , KEYLEFT },
{ THSELECT,KEYSELECT }
};
#endif

#if defined(OLEDESP)
/*********************/
/*　Keypad 入力処理 */
/*********************/
int lastTimekey=KEYNONE;
int firstitem=0;
int seconditem=0;
int position=0;
const char firstitems[][17] = {"Faultcode reset " , "HW TEST " , "Adjust TRIM " , "Adjust IdelSpeed" , "Adjust ignition " };
const char hwtestitems[][17]= {"Stepping Motor " , "Fuelpump TEST " , "AC Relay TEST " , "O2Heater TEST " , "PTC Relay TEST ","PurgeValve TEST" };

struct {
int lastcount; // A/D入力閾値
int key; // 戻り値
} t_key = { 500,KEYNONE };
#endif

long webcount = 0;
float webcount2=0.0;

#if defined(LCD40X4)
LiquidCrystal_I2C lcd(0x27, 40, 4); // I2C address 0x27, 40 column and 4 rows
LiquidCrystal_I2C lcd2(0x26, 40, 4); // I2C address 0x26, 40 column and 4 rows
#else
LCD_I2C lcd(0x27, 20, 4); // I2C address 0x27, 20 column and 4 rows
LCD_I2C lcd2(0x26, 20, 4); // I2C address 0x26, 20 column and 4 rows
#endif

#if defined(LCDKEY)
LiquidCrystal lcd3(LCD_RS, LCD_EN, LCD_D4, LCD_D5, LCD_D6, LCD_D7);
#endif

#if defined(OLEDESP)
Adafruit_SH1106G OLED1(128, 64, &Wire1, -1);
// 引数 WIDTH, HEIGHT, &Wire, OLED_RESET
// 4つ目の引数はRESETピン -1はArduinoのRESETピンと共有
int rolayvalue=0;
int keystatus=false;
//instead of changing here, rather change numbers above
AiEsp32RotaryEncoder rotaryEncoder = AiEsp32RotaryEncoder(ROTARY_ENCODER_A_PIN, ROTARY_ENCODER_B_PIN, ROTARY_ENCODER_BUTTON_PIN, ROTARY_ENCODER_VCC_PIN, ROTARY_ENCODER_STEPS);
#endif

uint8_t databuf[80];
int receive_byte;
int memsconnect;
int testruning;
int testitem;
int runtestitem;

const char MEMSModel[][11] = { "MNE10089 ", "MNE10078 ", "MNE101070 ", "MNE101170 ", "MNE101060 " };
const char MEMScode[][4] = { 0x98, 0x00, 0x00, 0x02, 0x3a, 0x00, 0x02, 0x14, 0x99, 0x00, 0x02, 0x03, 0x99, 0x00, 0x03, 0x03, 0x9a, 0x00, 0x01, 0x02 };

// Dataframe command(0x80)の構造体
struct command80 {
uint8_t commnad;
uint8_t framesize; //including this byte. This should be 0x1C (28 bytes) for the frame described here.
uint8_t enginespeed1; // RPM (16 bits)
uint8_t enginespeed2; // RPM (16 bits)
uint8_t coolanttemperature; //degrees C with +55 offset and 8-bit wrap
uint8_t ambienttemperature; // degrees C with +55 offset and 8-bit wrap
uint8_t intakeairtemperature; //degrees C with +55 offset and 8-bit wrap
uint8_t fueltemperature; //degrees C with +55 offset and 8-bit wrap. This is not supported on the Mini SPi, and always appears as 0xFF.
uint8_t mapsensorvalue; //kilopascals
uint8_t batteryvoltage; //0.1V per LSB (e.g. 0x7B == 12.3V)
uint8_t throttlepotvoltage; //0.02V per LSB. WOT should probably be close to 0xFA or 5.0V.
uint8_t idleswitch; //Bit 4 will be set if the throttle is closed, and it will be clear otherwise.
uint8_t Unknown1; //Probably a bitfield. Observed as 0x24 with engine off, and 0x20 with engine running. A single sample during a fifteen minute test drive showed a value of 0x30.
uint8_t parkneutralswitch; //Zero is closed, nonzero is open.
uint8_t faultcodes1; //On the Mini SPi, only two bits in this location are checked:
// Bit 0: Coolant temp sensor fault (Code 1)
// Bit 1: Inlet air temp sensor fault (Code 2)
uint8_t faultcodes2; //On the Mini SPi, only two bits in this location are checked:
// Bit 1: Fuel pump circuit fault (Code 10)
// Bit 7: Throttle pot circuit fault (Code 16)
uint8_t Unknown2;
uint8_t Unknown3;
uint8_t Unknown4;
uint8_t idleaircontrolmotorposition; //On the Mini SPi's A-series engine, 0 is closed, and 180 is wide open.
uint8_t idlespeed1; //deviation (MSB 16 bits)
uint8_t idlespeed2; //deviation (LSB 16 bits)
uint8_t Unknown5;
uint8_t ignitionadvance; //0.5 degrees per LSB with range of -24 deg (0x00) to 103.5 deg (0xFF)
uint8_t coiltime1; //0.002 milliseconds per LSB (16 bits)
uint8_t coiltime2; //0.002 milliseconds per LSB (16 bits)
uint8_t Unknown6;
uint8_t Unknown7;
uint8_t Unknown8;
};
// Dataframe command(0x7d)の構造体
struct command7d {
uint8_t commnad;
uint8_t framesize; // including this byte (0x1f)
uint8_t Unknown1;
uint8_t throttleangle;
uint8_t Unknown2;
uint8_t airfuelratio; // but often observed to never change from 0xFF
uint8_t Unknown3;
uint8_t lambdasensorvoltage; // 5mV per LSB
uint8_t lambdasensorfrequency; //
uint8_t lambdasensordutycycle; //
uint8_t lambdasensorstatus; // 0x01 for good, any other value for no good
uint8_t loopindicator; //0 for open loop and nonzero for closed loop
uint8_t longtermtrim;
uint8_t shorttermtrim; //1% per LSB
uint8_t carboncanisterpurgevalvedutycycle;
uint8_t Unknown4;
uint8_t idlebaseposition;
uint8_t Unknown5;
uint8_t Unknown6;
uint8_t Unknown7;
uint8_t Unknown8;
uint8_t idleerror;
uint8_t Unknown9;
uint8_t UnknownA;
uint8_t UnknownB;
uint8_t UnknownC;
uint8_t UnknownD;
uint8_t UnknownE;
uint8_t UnknownF;
uint8_t Unknown10;
uint8_t Unknown11;
uint8_t Unknown12;
uint8_t jackcount;
};
//Errorの取り出し
struct bits1 {
uint8_t coolanttempsensor : 1;
uint8_t inletairtempsensor : 1;
uint8_t b3 : 1;
uint8_t b4 : 1;
uint8_t b5 : 1;
uint8_t b6 : 1;
uint8_t b7 : 1;
uint8_t b8 : 1;
};

struct bits2 {
uint8_t b1 : 1;
uint8_t fuelpumpcircuit : 1;
uint8_t b3 : 1;
uint8_t b4 : 1;
uint8_t b5 : 1;
uint8_t mapsensor : 1;
uint8_t b7 : 1;
uint8_t throttlepotcircuit : 1;
};

union body {
uint8_t frame80[COMMAND80+1];
command80 frame;
} data;

union body2 {
uint8_t frame7d[COMMAND7D+1];
command7d frame;
} data2;

union body3 {
uint8_t faultcode1;
struct bits1 b;
} error1;

union body4 {
uint8_t faultcode2;
struct bits2 bb;
} error2;

#if defined(OLEDESP)
void IRAM_ATTR readEncoderISR()
{
rotaryEncoder.readEncoder_ISR();
}
void IRAM_ATTR isr()
{
if( millis() -button1.lastMillis >500){
button1.pressed =true;
}
button1.lastMillis=millis();
}
void IRAM_ATTR isr2()
{
if( millis() -button2.lastMillis >500){
button2.pressed =true;
}
button2.lastMillis=millis();
}
#endif

//Stepping moterのテスト
int steppingtest(void){
int steppingdata1,steppingdata2,originalposition,result=false;
unsigned long start_time = 0 ; // タイムアウト監視開始時間

//iNIT CODE FB
Serial2.write(0xfb); // 現在のSteppingの位置の取得
start_time = millis(); // 開始前の時刻を取得
while(Serial2.available() <2 ){
if ( (millis() - start_time) > 2000 ) {
break ; // 2000 mS 受信がなければループを抜ける
}
}
if (Serial2.available() != 2 ) { //データがかえってこなかった。
return (false);
}
//Serial2に受信データの結果読み出し(0xCC00)
steppingdata1= Serial2.read();
originalposition= Serial2.read();

Serial.print(steppingdata1);
Serial.print(originalposition);

if (steppingdata1 != 0xfb ) {
return (false);
}else{
if( originalposition==0){
return (false);
}else{
do{
//iNIT CODE FE
Serial2.write(0xfe); // 現在のSteppingのモーターをクローズ側へ移動
delay(50);
start_time = millis(); // 開始前の時刻を取得
while(Serial2.available() < 2 ){
if ( (millis() - start_time) > 2000 ) {
break ; // 2000 mS 受信がなければループを抜ける
}
}
if (Serial2.available() != 2 ) { //データがかえってこなかった。
return (false);
}
//Serial2に受信データの結果読み出し(0xCC00)
steppingdata1= Serial2.read();
steppingdata2= Serial2.read();
}while(steppingdata2 != 0 );
do{
//iNIT CODE FD
Serial2.write(0xfd); // 現在のSteppingのモーターをopen側へ移動
delay(50);
start_time = millis(); // 開始前の時刻を取得
while(Serial2.available() < 2 ){
if ( (millis() - start_time) > 2000 ) {
break ; // 2000 mS 受信がなければループを抜ける
}
}
if (Serial2.available() != 2 ) { //データがかえってこなかった。
return (false);
}
//Serial2に受信データの結果読み出し(0xCC00)
steppingdata1= Serial2.read();
steppingdata2= Serial2.read();
}while(steppingdata2 != 0xb4 );
do{
//iNIT CODE FE
Serial2.write(0xfe); // 現在のSteppingのモーターをクローズ側へ移動
delay(50);
start_time = millis(); // 開始前の時刻を取得
while(Serial2.available() < 2 ){
if ( (millis() - start_time) > 2000 ) {
break ; // 2000 mS 受信がなければループを抜ける
}
}
if (Serial2.available() != 2 ) { //データがかえってこなかった。
return (false);
}
//Serial2に受信データの結果読み出し(0xCC00)
steppingdata1= Serial2.read();
steppingdata2= Serial2.read();
}while(steppingdata2 != originalposition );
}
}
return(true);
}

//リレー関連のテスト
int relaytest(int relayon , int relayoff){
int i,relaydata1,relaydata2,result=false;
unsigned long start_time = 0 ; // タイムアウト監視開始時間

for( i=0 ; i<11 ; i++ ){ //ACR4は11回ループしていた
// Relay ON
Serial2.write(relayon); // 現在のrelay Onのコマンドを送る
delay(300);
start_time = millis(); // 開始前の時刻を取得
while(Serial2.available() < 2 ){
if ( (millis() - start_time) > 2000 ) {
break ; // 2000 mS 受信がなければループを抜ける
}
}
if (Serial2.available() != 2 ) { //データがかえってこなかった。
return (false);
}
//Serial2に受信データの結果読み出し
relaydata1= Serial2.read();
relaydata2= Serial2.read();

//Realy off
Serial2.write(relayoff); // 現在のrealy offコマンドを送信
delay(30);
start_time = millis(); // 開始前の時刻を取得
while(Serial2.available() < 2 ){
if ( (millis() - start_time) > 2000 ) {
break ; // 2000 mS 受信がなければループを抜ける
}
}
if (Serial2.available() != 2 ) { //データがかえってこなかった。
return (false);
}
//Serial2に受信データの結果読み出し
relaydata1= Serial2.read();
relaydata2= Serial2.read();
}
//ダメ押しのOFF
Serial2.write(relayoff); // 現在のRealyのOFFをさらに送信
delay(300);
start_time = millis(); // 開始前の時刻を取得
while(Serial2.available() < 2 ){
if ( (millis() - start_time) > 2000 ) {
break ; // 2000 mS 受信がなければループを抜ける
}
}
if (Serial2.available() != 2 ) { //データがかえってこなかった。
return (false);
}
//Serial2に受信データの結果読み出し
relaydata1= Serial2.read();
relaydata2= Serial2.read();

return(true);
}

// 内部変数でhtmlファイル内のSTATEの文字を変える
String processor(const String& var) {
char buf[80];
uint8_t readdata1,readdata2;
int receive,count=0;
unsigned long start_time = 0 ; // タイムアウト監視開始時間

// Serial.println(var);
if (var == "RPM") {
webcount=(int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2;
return String(webcount);
} else if (var == "Twater") {
webcount=(int)data.frame.coolanttemperature - 55;
return String(webcount);
} else if (var == "Tintake") {
webcount=(int)data.frame.intakeairtemperature - 55;
return String(webcount);
} else if (var == "Tambient"){
webcount=(int)data.frame.ambienttemperature - 55;
return String(webcount);
} else if (var == "DATA00"){
webcount=(int)data2.frame.Unknown1;
return String(webcount);
} else if (var =="tangule"){
webcount2=(float)(data2.frame.throttleangle) /2;
return dtostrf(webcount2,5,1,buf);
} else if (var == "AF"){
webcount2=(float)data2.frame.airfuelratio / 10;
return dtostrf(webcount2,6,1,buf);
} else if (var == "DATA03"){
webcount=(int)data2.frame.Unknown2;
return String(webcount);
} else if (var == "Ftemp"){
webcount=(int)data.frame.fueltemperature - 55;
return String(webcount);
} else if (var == "MAPsensor"){
webcount=(int)data.frame.mapsensorvalue;
return String(webcount);
} else if (var == "Bvoltage"){
webcount2=0.1 * (float)data.frame.batteryvoltage;
return dtostrf(webcount2,5,1,buf);
} else if (var == "Tvoltage"){
webcount2=0.02 * (float)data.frame.throttlepotvoltage;
return dtostrf(webcount2,6,2,buf);
} else if (var == "idelSW"){
webcount=(int)data.frame.idleswitch;
return String(webcount);
} else if (var == "Unknown1"){
webcount=(int)data.frame.Unknown1;
return String(webcount,BIN);
} else if (var == "parksw"){
webcount=(int)data.frame.parkneutralswitch;
return String(webcount);
} else if (var == "faultcodes1"){
webcount=(int)data.frame.faultcodes1;
return String(webcount , BIN );
} else if (var == "faultcodes2"){
webcount=(int)data.frame.faultcodes2;
return String(webcount , BIN );
} else if (var == "unknow2"){
webcount2=6.1 * (float)data.frame.Unknown2;
return dtostrf(webcount2,6,1,buf);
} else if (var == "unknow3"){
webcount=(int)data.frame.Unknown3;
return String(webcount);
} else if (var == "unknow4"){
webcount=(int)data.frame.Unknown4;
return String(webcount);
} else if (var == "idleaircontrolmotorposition"){
webcount=(int)data.frame.idleaircontrolmotorposition;
return String(webcount);
} else if (var == "idlespeed"){
webcount=(int)data.frame.idlespeed1 * 256 + (int)data.frame.idlespeed2;
return String(webcount);
} else if (var == "idleaircontrolmotorposition"){
webcount=(int)data.frame.idleaircontrolmotorposition;
return String(webcount);
} else if (var == "Unknown5"){
webcount2=0.5 * (float)data.frame.Unknown5;
return dtostrf(webcount2,6,1,buf);
} else if (var == "ignitionadvance"){
webcount2=-24.0 + 0.5 * (float)data.frame.ignitionadvance;
return dtostrf(webcount2,6,1,buf);
} else if (var == "coiltime"){
webcount2=0.002 * ((float)data.frame.coiltime1*256 + (float)data.frame.coiltime2);
return dtostrf(webcount2,8,3,buf);
} else if (var == "unknown6"){
webcount=(int)data.frame.Unknown6;
return String(webcount);
} else if (var == "unknown7"){
webcount=(int)data.frame.Unknown7;
return String(webcount);
} else if (var == "unknown8"){
webcount=(int)data.frame.Unknown8;
return String(webcount);
} else if (var == "Unknown2B"){
webcount=(int)data2.frame.Unknown3;
return String(webcount,BIN );
} else if (var == "lambdasensorvoltage"){
webcount=5 * (int)data2.frame.lambdasensorvoltage;
return String(webcount);
} else if (var == "lambdasensorfrequency"){
webcount=(int)data2.frame.lambdasensorfrequency;
return String(webcount);
} else if (var == "lambdasensordutycycle"){
webcount=(int)data2.frame.lambdasensordutycycle;
return String(webcount);
} else if (var == "lambdasensorstatus"){
webcount=(int)data2.frame.lambdasensorstatus;
return String(webcount);
} else if (var == "loopindicator"){
webcount=(int)data2.frame.loopindicator;
return String(webcount);
} else if (var == "longtermtrim"){
webcount=(int)data2.frame.longtermtrim-128;
return String(webcount);
} else if (var == "shorttermtrim"){
webcount=(int)data2.frame.shorttermtrim;
return String(webcount);
} else if (var == "purgevalvedutycycle"){
webcount=(int)data2.frame.carboncanisterpurgevalvedutycycle;
return String(webcount);
} else if (var == "Unknown4B"){
webcount=(int)data2.frame.Unknown4;
return String(webcount,BIN);
} else if (var == "idlebaseposition"){
webcount=(int)data2.frame.idlebaseposition;
return String(webcount);
} else if (var == "Unknown5B"){
webcount=(int)data2.frame.Unknown5;
return String(webcount,HEX);
} else if (var == "Unknown6B"){
webcount=(int)data2.frame.Unknown6;
return String(webcount,BIN);
} else if (var == "Unknown7B"){
webcount=(int)data2.frame.Unknown7-48;
return String(webcount);
} else if (var == "Unknown8B"){
webcount=(int)data2.frame.Unknown8;
return String(webcount);
} else if (var == "idleerror"){
webcount=(int)data2.frame.idleerror;
return String(webcount);
} else if (var == "Unknown9B"){
webcount=(int)data2.frame.Unknown9;
return String(webcount,HEX);
} else if (var == "UnknownA"){
webcount=(int)data2.frame.UnknownA;
return String(webcount,BIN);
} else if (var == "UnknownB"){
webcount=(int)data2.frame.UnknownB;
return String(webcount,HEX);
} else if (var == "UnknownC"){
webcount=(int)data2.frame.UnknownC;
return String(webcount,HEX);
} else if (var == "UnknownD"){
webcount=(int)data2.frame.UnknownD;
return String(webcount,HEX);
} else if (var == "UnknownE"){
webcount=(int)data2.frame.UnknownE;
return String(webcount,HEX);
} else if (var == "UnknownF"){
webcount=(int)data2.frame.UnknownF;
return String(webcount,HEX);
} else if (var == "Unknown10"){
webcount=(int)data2.frame.Unknown10;
return String(webcount,HEX);
} else if (var == "Unknown11"){
webcount=(int)data2.frame.Unknown11;
return String(webcount,HEX);
} else if (var == "Unknown12"){
webcount=(int)data2.frame.Unknown12;
return String(webcount,HEX);
} else if (var == "jackcount"){
webcount=(int)data2.frame.jackcount;
return String(webcount);
} else if (var == "HWRESETRESULTS"){
if( memsconnect == false){
return"MEMSに接続されていません";
}else{
webcount=(int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2;
if( webcount !=0){
return"エンジンを止めてください";
}else{
//シリアルのBUFFERのから読み
while(Serial2.available() !=0 )Serial2.read();
//iNIT CODE CC
Serial2.write(0xCC); // f4=Fault code reset
start_time = millis(); // 開始前の時刻を取得
while(Serial2.available() < 2 ){
if ( (millis() - start_time) > 2000 ) {
break ; // 2000 mS 受信がなければループを抜ける
}
}
if (Serial2.available() != 2 ) {
return ("エラーコードが返ってこない");
}
//Serial2に受信データの結果読み出し(0xCC00)
readdata1= Serial2.read();
readdata2= Serial2.read();
if (readdata1 == 0xCC && readdata2 == 0x00) {
return ("初期化に成功しました");
}
return ("初期化に失敗しました");
}
}
} else if (var == "STEPPINGRESULTS"){
if(testruning==true){
return"テスト実行中";
}else{
if( memsconnect == false){
return"MEMSに接続されていません";
}else{
switch(testitem){
case STEPPINGFINISHNG:
testitem=NOTEST;
return"MEMSの帰り値が不正でした";
case STEPPINGFINISHOK:
testitem=NOTEST;
return"Stepping Motorテストが完了しました";
}
webcount=(int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2;
if( webcount !=0 ){
return"エンジンを止めてください";
}else{
runtestitem=STEPPINGNUM;
testruning=true;
return("Stepping Motorのテストの実行を始めました");
}
}
}
} else if (var == "FUELPUMPRESULTS"){
if(testruning==true){
return"テスト実行中";
}else{
if( memsconnect == false){
return"MEMSに接続されていません";
}else{
switch(testitem){
case FUELPUMPFINISHNG:
testitem=NOTEST;
return"MEMSの帰り値が不正でした";
case FUELPUMPFINISHOK:
testitem=NOTEST;
return"燃料ポンプリレーのテストが完了しました";
}
webcount=(int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2;
if( webcount !=0 ){
return"エンジンを止めてください";
}else{
runtestitem=FUELPUMPNUM;
testruning=true;
return("燃料ポンプリレーのテストの実行を始めました");
}
}
}
} else if (var == "ACRELAYRESULTS"){
if(testruning==true){
return"テスト実行中";
}else{
if( memsconnect == false){
return"MEMSに接続されていません";
}else{
switch(testitem){
case ACRELAYFINISHNG:
testitem=NOTEST;
return"MEMSの帰り値が不正でした";
case ACRELAYFINISHOK:
testitem=NOTEST;
return"エアコン　リレーのテストが完了しました";
}
webcount=(int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2;
if( webcount !=0 ){
return"エンジンを止めてください";
}else{
runtestitem=ACRELAYNUM;
testruning=true;
return("エアコンリレーのテストの実行を始めました");
}
}
}
} else if (var == "O2HEATERRESULTS"){
if(testruning==true){
return"テスト実行中";
}else{
if( memsconnect == false){
return"MEMSに接続されていません";
}else{
switch(testitem){
case O2HEATERFINISHNG:
testitem=NOTEST;
return"MEMSの帰り値が不正でした";
case O2HEATERFINISHOK:
testitem=NOTEST;
return"O2センサーのリレーのテストが完了しました";
}
webcount=(int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2;
if( webcount !=0 ){
return"エンジンを止めてください";
}else{
runtestitem=O2HEATERNUM;
testruning=true;
return("O2センサーリレーのテストの実行を始めました");
}
}
}
} else if (var == "PTCRELAYRESULTS"){
if(testruning==true){
return"テスト実行中";
}else{
if( memsconnect == false){
return"MEMSに接続されていません";
}else{
switch(testitem){
case PTCRELAYFINISHNG:
testitem=NOTEST;
return"MEMSの帰り値が不正でした";
case PTCRELAYFINISHOK:
testitem=NOTEST;
return"PTCリレーのテストが完了しました";
}
webcount=(int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2;
if( webcount !=0 ){
return"エンジンを止めてください";
}else{
runtestitem=PTCRELAYNUM;
testruning=true;
return("PTCリレーのテストの実行を始めました");
}
}
}
} else if (var == "PURGEVALVERESULTS"){
if(testruning==true){
return"テスト実行中";
}else{
if( memsconnect == false){
return"MEMSに接続されていません";
}else{
switch(testitem){
case PURGEVALVEFINISHNG:
testitem=NOTEST;
return"MEMSの帰り値が不正でした";
case PURGEVALVEFINISHOK:
testitem=NOTEST;
return"Purgeバルブリレーのテストが完了しました";
}
webcount=(int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2;
if( webcount !=0 ){
return"エンジンを止めてください";
}else{
runtestitem=PURGEVALVENUM;
testruning=true;
return("Purgeバルブリレーのテストの実行を始めました");
}
}
}
}else
return String();
}

int Readbyte_MEMS(int *result) {
int Initerror = false, count = 0;
while (!Serial2.available()) {
count = count + 1;
;
if (count > 10000) {
Initerror = true;
return (Initerror);
}
}
//Serial2に受信データがあるか
*result = Serial2.read(); //Serial2データを読み出し
return (Initerror);
}

int Readmulti_MEMS(void) {
uint8_t readdata;
int i, Initerror = false, count;
// String str;

count = 0;
receive_byte = 0;
do {
receive_byte = Serial2.available();
count = count + 1;
if (count > 10000) {
break;
}
} while (receive_byte < 33);

if (receive_byte == 0) {
Initerror = true;
return (Initerror);
}
//Serial2に受信データがあるか
// Serial.printf("receive byte=%02d\n", receive_byte);
for (i = 0; i < receive_byte; i++) {
readdata= (uint8_t)Serial2.read();
databuf[i] = readdata;
// Serial.printf("data~%02X databuf=%02X\n", readdata,databuf[i]);
}
databuf[receive_byte] = 0;
}

void StrtoHEX(void) {

int i;

for (i = 0; i < receive_byte; i++) {
Serial.printf("%02X", databuf[i]);
}
}

int InitMEMS(void) {
int i, j, data, count = 0, result, retry = 0,readdata[COMMANDD0];

memsconnect=false;
testitem=NOTEST;
runtestitem=NOTEST;
// ゴミデータの読みだし
while (Serial2.available() != 0) {
Serial2.read();
}
//iNIT CODE 00
Serial2.write(0);

Readbyte_MEMS(&data);
// Serial.println(data);

//iNIT CODE F9
Serial2.write(0xF9);

Readbyte_MEMS(&data);
// Serial.println(data);

//iNIT CODE CA
Serial2.write(0xCA);

Readbyte_MEMS(&data);
// Serial.println(data);

//iNIT CODE 75
Serial2.write(0x75);

Readbyte_MEMS(&data);
// Serial.println(data);

//iNIT CODE D0
Serial2.write(0xd0);
delay(100);

//Read Model
result = false;
count = 0;
while(Serial2.available()!=COMMANDD0){
count++;
if(count >10000){
return(result);
}
};
if(count == COMMANDD0){
return(result);
}
for(i=0;i<COMMANDD0;i++){
readdata[i]= Serial2.read();
}
//Medel表示
for (j = 0; j < ModelNum; j++) {
count = 0;
for (i = 0; i < COMMANDD0 ; i++) {
if (i == 0) continue;
if (MEMScode[j][i - 1] == readdata[i] ) {
count++;
if (count == (COMMANDD0-1) ) {
lcd.setCursor(0+xpos, 1-ypos);
lcd.printf("%s", MEMSModel[j]);
// Serial.printf("I=%d j=%d data=%s \n",i,j,MEMSModel[j]);
result = true;
break;
} else {
// Serial.printf("I=%d j=%d\n",i,j);
continue;
}
}
}
if (result == true) {
break;
}
}
//Medelが見つからなかったときは、コード表示
if (j == ModelNum) {
lcd.setCursor(0+xpos, 1-ypos);
for (i = 0; i < COMMANDD0; i++) lcd.printf("%02X", readdata[i]);
}
memsconnect=true;
return(true);
}

void setup() {

// シリアル初期化
Serial.begin(115200);
while (!Serial);
// Serial2.begin(9600, SERIAL_8N1, 17, 16); //ピンを指定して使用する場合
Serial2.begin(9600, SERIAL_8N1, UARTRX, UARTTX); //ピンを指定して使用する場合
while (!Serial2);

#if defined(ESP32S3)
Wire.begin(I2CSDA , I2CSCL);
lcd.begin(false); // initialize the lcd
lcd.backlight();
lcd2.begin(false); // initialize the lcd
lcd2.backlight();
#else
lcd.begin(); // initialize the lcd
lcd.backlight();
lcd2.begin(); // initialize the lcd
lcd2.backlight();
#endif

#if defined(LCDKEY)
lcd3.begin(16, 2); //LCD KEY SHIELDの初期化
delay(100);
lcd3.clear();
#endif

#if defined(OLEDESP)
// OLED Setuo
Wire1.begin(Wire1_SDA, Wire1_SCL);
//we must initialize rotary encoder
rotaryEncoder.begin();
rotaryEncoder.setup(readEncoderISR);
delay(250); // wait for the OLED to power up

if(!OLED1.begin(OLED_I2C_ADRS, true)) {
Serial.println(F("SH1106 OLED allocation failed"));
for(;;); // Don't proceed, loop forever
}
// OLEDに初期表示バッファの内容を表示する
// ライブラリはこれをAdafruitスプラッシュ画面で初期化する
OLED1.display();
delay(2000); // 2秒待つ
OLED1.clearDisplay();
OLED1.display();
OLED1.setTextSize(1); // フォントサイズを1～で指定
OLED1.setTextColor(SH110X_WHITE); // フォント色
//set boundaries and if values should cycle or not
//in this example we will set possible values between 0 and 1000;
rotaryEncoder.setAcceleration(250); //or set the value - larger number = more accelearation; 0 or 1 means disabled acceleration
// rotaryEncoder.correctionOffset=8; //try with zero or ROTARY_ENCODER_STEPS/8
// rotaryEncoder.isButtonPulldown = false;
// rotaryEncoder.areEncoderPinsPulldownforEsp32 = true;

bool circleValues = false;
rotaryEncoder.setBoundaries(0, 1000, circleValues); //minValue, maxValue, circleValues true|false (when max go to min and vice versa)
rotaryEncoder.setEncoderValue(500);
/*Rotary acceleration introduced 25.2.2021.
* in case range to select is huge, for example - select a value between 0 and 1000 and we want 785
* without accelerateion you need long time to get to that number
* Using acceleration, faster you turn, faster will the value raise.
* For fine tuning slow down.
*/
//rotaryEncoder.disableAcceleration(); //acceleration is now enabled by default - disable if you dont need it

//KEY Setuo
t_key.lastcount=500;
button1.lastMillis=millis();
button2.lastMillis=millis();
button1.pressed=false;
button2.pressed=false;
pinMode(button1.PIN,INPUT_PULLUP);
pinMode(button2.PIN,INPUT_PULLUP);
attachInterrupt(button1.PIN, isr,FALLING);
attachInterrupt(button2.PIN, isr2,FALLING);
#endif
// LittleFSのセットアップ
if (!LittleFS.begin(true)) {
Serial.println("An Error has occurred while mounting LittleFS");
return;
}

#ifdef AP_Mode
WiFi.mode(WIFI_MODE_AP); // or WIFI_MODE_APSTA
WiFi.softAP(ssid, password);
delay(100);
WiFi.softAPConfig(ip, ip, subnet);
IPAddress myIP = WiFi.softAPIP();
Serial.print("SSID= ");
Serial.println(ssid);
Serial.print("Fixed IP addr= ");
Serial.println(myIP);
Serial.println("Server starting!");
#else
// Connect to Wi-Fi network with SSID and password
Serial.print("Connecting to ");
Serial.println(ssid);
WiFi.mode(WIFI_STA);
WiFi.begin(ssid, password);
//WIDI 接続を10秒待つ
unsigned long ftm = millis() + 10 * 1000;
while ((WiFi.status() != WL_CONNECTED) & (millis() < ftm)) {
Serial.print('*');
delay(500);
}
// Print local IP address and start web server
Serial.println("");
Serial.println("WiFi connected.");
Serial.println("IP address: ");
Serial.println(WiFi.localIP());
#endif

lcd.setCursor(0, 0); // move cursor the first row

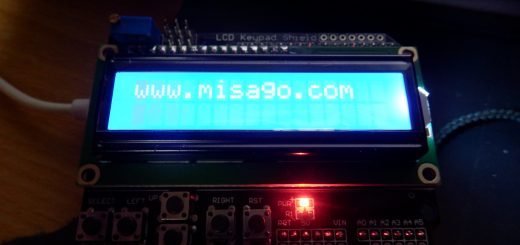

lcd.print("www.misago.com"); // print message the fourth row
// lcd2.setCursor(0, 0); // move cursor the first row AT Second LCDS
// lcd2.print("Hello!!"); // print message the fourth row

Serial.println("Init Start");

InitMEMS();

testruning=false;
lcd.setCursor(17+xpos, 1-ypos);
lcd.print("Dis");

// GETリクエストに対するハンドラーを登録
// rootにアクセスされた時のレスポンス
server.on("/", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/index.html", String(), false, processor);
});
// style.cssにアクセスされた時のレスポンス
server.on("/style.css", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/style.css", "text/css");
});
// 画像にアクセスされた時のレスポンス
server.on("/deto", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/deto.jpg", "image/jpeg");
});
// リロードボタンにアクセスされた時のレスポンス
server.on("/RELOAD", HTTP_GET, [](AsyncWebServerRequest * request) {
request->redirect("/");
});
// Viewリロードボタンにアクセスされた時のレスポンス
server.on("/RELOAD2", HTTP_GET, [](AsyncWebServerRequest * request) {
request->redirect("/VIEW");
});
// クリアボタンにアクセスされた時のレスポンス
server.on("/BUTTON", HTTP_GET, [](AsyncWebServerRequest * request) {
request->redirect("/");
});
// viewにアクセスされた時のレスポンス
server.on("/VIEW", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/view.html", String(), false, processor);
});
// HWWRESETにアクセスされた時のレスポンス
server.on("/HWRESET", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/memsclear.html", String(), false, processor);
});
// HWtestにアクセスされた時のレスポンス
server.on("/HWTEST", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/memstest.html" );
});
// STEPPINGにアクセスされた時のレスポンス
server.on("/STEPPING", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/stepping.html", String(), false, processor);
});
// Fuel Pumpにアクセスされた時のレスポンス
server.on("/FUELPUMP", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/fuelpump.html", String(), false, processor);
});
// AC RELAYにアクセスされた時のレスポンス
server.on("/ACRELAY", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/acrelay.html", String(), false, processor);
});
// O2 Heaterにアクセスされた時のレスポンス
server.on("/O2HEATER", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/o2heater.html", String(), false, processor);
});
// PTCにアクセスされた時のレスポンス
server.on("/PTCRELAY", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/ptcrelay.html", String(), false, processor);
});
// PURGEにアクセスされた時のレスポンス
server.on("/PURGEVALVE", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/purgevalve.html", String(), false, processor);
});
// IDAVDにアクセスされた時のレスポンス
server.on("/IGADV", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/igadv.html", String(), false, processor);
});
// TRIMにアクセスされた時のレスポンス
server.on("/TRIM", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/trim.html", String(), false, processor);
});
// IDELにアクセスされた時のレスポンス
server.on("/IDEL", HTTP_GET, [](AsyncWebServerRequest * request) {
request->send(LittleFS, "/idel.html", String(), false, processor);
});

// ESP32_WebServer start
server.begin();
Serial.println("ESP32_WebServer start!");

#if defined(LCDKEY)
lcd3.setCursor(0,0); //カーソルの移動
lcd3.print(firstitems[firstitem]);
#endif
Serial.println("Init end");

#if defined(OLEDESP)
OLED1.setCursor(0,1);
OLED1.clearDisplay();
OLED1.println("Please select item");
OLED1.println(firstitems[0]);
OLED1.display();
#endif
delay(1000);
}

#if defined(OLEDESP)
/*
#define KEYRIGHT 0
#define KEYUP 1
#define KEYDOWN 2
#define KEYLEFT 3
#define KEYSELECT 4
#define KEYNONE 5
#define KEYERR 6
*/
int read_encoder(void)
{
//dont print anything unless value changed
if (rotaryEncoder.encoderChanged())
{
rolayvalue=rotaryEncoder.readEncoder();
if ( (t_key.lastcount -rolayvalue) > 3 ){
t_key.lastcount = rolayvalue;
t_key.key = KEYRIGHT;
return(KEYRIGHT);
}
if ( (t_key.lastcount -rolayvalue) < -3 ){
t_key.lastcount = rolayvalue;
t_key.key = KEYLEFT;
return(KEYLEFT);
}
}
// if (rotaryEncoder.isEncoderButtonClicked())
// {
// rotary_onButtonClick();
// }
// PUSH BACK
if ( button1.pressed ==true ){
button1.pressed =false;
t_key.key = KEYUP;
return(KEYUP);
}
// PUSH COMFIRM
if ( button2.pressed ==true ){
t_key.key = KEYSELECT;
button2.pressed =false;
return(KEYSELECT);
}
// t_key.key = KEYNONE;
return(KEYNONE);
}
#endif

int CheckConnect(void) {
int result = false,count=0,readdata1,readdata2,receive=0;

//iNIT CODE F4
Serial2.write(0xF4); // f4=nop
delay(50);

do {
receive= Serial2.available();
count = count + 1;
if (count > 50000) {
break;
}
} while (receive< 2);
// Serial.printf("F4 readnum=%d\n",receive);
if (receive != 2 ) {
return (result);
}
//Serial2に受信データの結果読み出し(0xf400)
readdata1= Serial2.read();
readdata2= Serial2.read();
if (readdata1 == 0xF4 && readdata2 == 0x00) {
result = true;
}
return (result);
}

void CheckFaultcode(void) {

lcd.setCursor(8+xpos, 3-ypos*2);
lcd.printf("Fcode:");

//Fault codeの確認
if ((int)data.frame.faultcodes1 == 0 && (int)data.frame.faultcodes2 == 0) {
lcd.setCursor(15+xpos, 3-ypos*2);
lcd.printf("NoErr");
return;
}
error1.faultcode1 = data.frame.faultcodes1;
if (error1.b.coolanttempsensor != 0) {
lcd.setCursor(15+xpos, 3-ypos*2);
lcd.printf("C ");
}
if (error1.b.inletairtempsensor != 0) {
lcd.setCursor(16+xpos, 3-ypos*2);
lcd.printf("I ");
}
error2.faultcode2 = data.frame.faultcodes2;
if (error2.bb.fuelpumpcircuit != 0) {
lcd.setCursor(17+xpos, 3-2*ypos);
lcd.printf("F ");
}
if (error2.bb.throttlepotcircuit != 0) {
lcd.setCursor(18+xpos, 3-2*ypos);
lcd.printf("T ");
}
if (error2.bb.mapsensor != 0) {
lcd.setCursor(19+xpos, 3-2*ypos);
lcd.printf("M");
}
}

/*********************/
/*　keypad入力処理 */
/*********************/
#if defined(LCDKEY)
int red_key()
{
int i;
int r;
int key;
r = KEYERR;
key = analogRead(KEY_AD);
// lcd3.setCursor(0,0); //カーソルの移動
// lcd3.print(key);
if( key > THNONE ) r = KEYNONE;
else {
for( i = 0; i < 5; i++ ) {
if( key < t_key[i].dat ) {
r = t_key[i].ret;
break;
}
}
}
return( r );
}
/*********************/
/*　入力Key表示 */
/*********************/
void prn_key(int key)
{
lcd3.setCursor(0,1); //カーソルの移動
switch (key) {
case KEYRIGHT:
lcd3.print("RIGHT ");
break;
case KEYLEFT:
lcd3.print("LEFT ");
break;
case KEYUP:
lcd3.print("UP ");
break;
case KEYDOWN:
lcd3.print("DOWN ");
break;
case KEYSELECT:
lcd3.print("SELECT ");
break;
case KEYNONE:
lcd3.print("NONE ");
break;
case KEYERR:
lcd3.print("ERROR ");
break;
default:
break;
}
}
#endif

void loop() {
int i;
unsigned long start_time = 0 ; // タイムアウト監視開始時間
#if defined(LCDKEY)||defined(OLEDESP)
int key1,changekey, readdata1, readdata2;
#endif
// MEMSとの接続確認
if (testruning == true ){
testitem=NOTEST;
switch(runtestitem){ //HW診断の実行
case STEPPINGNUM:
if(steppingtest() ==false){
testitem=STEPPINGFINISHNG;
}else{
testitem=STEPPINGFINISHOK;
}
testruning = false;
runtestitem = NOTEST;
return;

case FUELPUMPNUM:
if(relaytest( 0x11 ,0x01 ) == false ){ // FUEL PUMP test
testitem=FUELPUMPFINISHNG;
}else{
testitem=FUELPUMPFINISHOK;
}
testruning = false;
runtestitem =NOTEST;
return;

case ACRELAYNUM:
if(relaytest( 0x13 ,0x03 ) == false ){ // AC RELAY test
testitem=ACRELAYFINISHNG;
}else{
testitem=ACRELAYFINISHOK;
}
testruning = false;
runtestitem =NOTEST;
return;
case O2HEATERNUM:
if(relaytest( 0x19 ,0x09 ) == false ){ // O2HEATER RELAY test
testitem=O2HEATERFINISHNG;
}else{
testitem=O2HEATERFINISHOK;
}
testruning = false;
runtestitem =NOTEST;
return;
case PTCRELAYNUM:
if(relaytest( 0x12 ,0x02 ) == false ){ // PTC RELAY test
testitem=PTCRELAYFINISHNG;
}else{
testitem=PTCRELAYFINISHOK;
}
testruning = false;
runtestitem =NOTEST;
return;
case PURGEVALVENUM:
if(relaytest( 0x18 ,0x08 ) == false ){ // VERGEVALVE RELAY test
testitem=PURGEVALVEFINISHNG;
}else{
testitem=PURGEVALVEFINISHOK;
}
testruning = false;
runtestitem =NOTEST;
return;
}
}
if (CheckConnect() == true) {
lcd.setCursor(17+xpos, 1-ypos);
lcd.printf("Con");

//データーフレーム(0x80)の読み出し
Serial2.write(0x80);
start_time = millis();
// 開始前の時刻を取得
while(Serial2.available() < COMMAND80){
if ( (millis() - start_time) > 2000 ) {
break ; // 2000 mS 受信がなければループを抜ける
}
// Serial.printf("receivenum=%d \",Serial2.available());
}
// Serial.printf("receive finalnum=%d \n",Serial2.available());
for(i=0;i<COMMAND80;i++){
data.frame80[i] =(uint8_t)Serial2.read();
}
//MEMSの電圧表示
lcd.setCursor(0, 2-ypos);
lcd.printf("%4.1fV", 0.1 * (float)data.frame.batteryvoltage);
//MEMSの環境温度
lcd.setCursor(6, 2-ypos);
lcd.printf("W:%3d", (int)data.frame.intakeairtemperature - 55);
lcd.setCursor(11, 2-ypos);
lcd.write(0xdf);
lcd.write('C');
//MEMSの水温
lcd.setCursor(14, 2-ypos);
lcd.printf("A:%2d", (int)data.frame.coolanttemperature - 55);
lcd.setCursor(18, 2-ypos);
lcd.write(0xdf);
lcd.write('C');
//MEMSが管理しているエンジン回転数
lcd.setCursor(0+xpos, 3-2*ypos);
lcd.printf("%04dRPM", (int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2);
CheckFaultcode();
#if defined(LCD40X4)
lcd.setCursor(0, 2);
lcd.printf("Coil%6.3fmV", 0.002*((float)(data.frame.coiltime1 * 256) + (float)data.frame.coiltime2));
lcd.setCursor(13, 2);
lcd.printf("AF:%4.1f", (float)data2.frame.airfuelratio / 10);
lcd.setCursor(21, 2);
lcd.printf("Jackcount:%3d", (int)data2.frame.jackcount);
#endif
//Idel position
lcd2.setCursor(0, 0);
lcd2.printf("Ipos:%03d", (int)data.frame.idleaircontrolmotorposition);
//Idel speed
lcd2.setCursor(9, 0);
lcd2.printf("IdelEr%05d", (int)data.frame.idlespeed1 * 256 + (int)data.frame.idlespeed2);
//スロットル開度
lcd2.setCursor(0+xpos, 1-ypos);
lcd2.printf("Tp:%5.1f", (float)(data.frame.throttlepotvoltage) / 250 * 100); //Throttle pot voltage, 0.02V per LSB. WOT should probably be close to 0xFA or 5.0V.
lcd2.write('%');
//進角
lcd2.setCursor(10+xpos, 1-ypos);
lcd2.printf("IgAd:%05.1f", -24.0 + 0.5 * (float)data.frame.ignitionadvance); //Ignition 0.5 degrees per LSB with range of -24 deg (0x00) to 103.5 deg (0xFF)
//Coil time
// lcd2.setCursor(0, 2);
// lcd2.printf("Ctime:%4.1f",0,002*((float)data.frame.coiltime1*256+ (float)data.frame.coiltime2)); //Ignition 0.5 degrees per LSB with range of -24 deg (0x00) to 103.5 deg (0xFF)
//データーフレーム(0x7D)の読み出し
Serial2.write(0x7d);
start_time = millis(); // 開始前の時刻を取得
while(Serial2.available() < COMMAND7D){
if ( (millis() - start_time) > 2000 ) {
break ; // 2000 mS 受信がなければループを抜ける
// Serial.printf("7D num=%d \n",Serial2.available());
}
// Serial.printf("7D finalnum=%d \n",Serial2.available());
}
for(i=0;i<COMMAND7D;i++){
data2.frame7d[i] =(uint8_t)Serial2.read();
}
//Map sensoe
lcd2.setCursor(0, 2-ypos);
lcd2.printf("Map:%03d", (int)data.frame.mapsensorvalue);
// lambda_voltage(mV)
lcd2.setCursor(8, 2-ypos);
lcd2.printf("Lamda:%4dmV", 5 * (int)data2.frame.lambdasensorvoltage); // 5mV per LSB
//Closeloop:0 for open loop and nonzero for closed loop
lcd2.setCursor(0+xpos, 3-2*ypos);
lcd2.printf("Cloop:");
if (data2.frame.loopindicator == 0) {
lcd2.setCursor(6+xpos, 3-2*ypos);
lcd2.printf("Open ");
} else {
lcd2.setCursor(6+xpos, 3-2*ypos);
lcd2.printf("Close");
}
//Short_trim
lcd2.setCursor(11+xpos, 3-2*ypos);
lcd2.printf("Trim:%3d%", data2.frame.shorttermtrim); //1% per LSB
} else {
lcd.setCursor(0, 0); // move cursor the first row
lcd.print("www.misago.com"); // print message the fourth row
lcd.setCursor(17+xpos, 1-ypos);
lcd.print("Dis");
#if defined(LCD40X4)
for (i = 1; i < 4; i++) {
lcd.setCursor(0, i);
lcd.print(" ");
lcd.setCursor(20, i);
lcd.print(" ");
}
for (i = 0; i < 4; i++) {
lcd2.setCursor(0, i);
lcd2.print(" ");
lcd2.setCursor(20, i);
lcd2.print(" ");
}
#else
for (i = 2; i < 4; i++) {
lcd.setCursor(0, i);
lcd.print(" ");
}
for (i = 0; i < 4; i++) {
lcd2.setCursor(0, i);
lcd2.print(" ");
}
#endif
InitMEMS();
}
#if defined(LCDKEY)
key1 = red_key();
if( lastTimekey != key1){ // 入力に変化あり
changekey = key1;
start_time = millis();
do{ //チャタリング対策
key1 = red_key();
if ( (millis()- start_time > 200 ) && (changekey == key1) )break;
}while( true );
// prn_key( key1 );
lastTimekey = key1;
}
switch (lastTimekey) {
case KEYRIGHT:
if(position ==0 ){
if(firstitem < 4){
firstitem++;
lcd3.setCursor(0,0); //カーソルの移動
lcd3.print(firstitems[firstitem]);
}
}else if(position == 1) {
if( seconditem < 5 ) {
seconditem++;
lcd3.setCursor(0,0); //カーソルの移動
lcd3.print(hwtestitems[seconditem]);
}
}
break;
case KEYUP:
if(position != 0) {
position--;
}
testitem=NOTEST;
lcd3.setCursor(0,0); //カーソルの移動
if (position == 1 )lcd3.print(hwtestitems[seconditem]);
if (position == 0 )lcd3.print(firstitems[firstitem]);
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print(" ");
break;
case KEYDOWN:
break;
case KEYLEFT:
if(position == 0) {
if( firstitem !=0) {
firstitem--;
lcd3.setCursor(0,0); //カーソルの移動
lcd3.print(firstitems[firstitem]);
}
}else if(position == 1) {
if( seconditem !=0) {
seconditem--;
lcd3.setCursor(0,0); //カーソルの移動
lcd3.print(hwtestitems[seconditem]);
}
}
break;
case KEYSELECT:
if(position == 0) {
position++;
if( firstitem ==1) {
lcd3.setCursor(0,0); //カーソルの移動
lcd3.print(hwtestitems[seconditem]);
}else{
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Execution ?(S)");
}
break;
}else if(position == 1){
if( firstitem ==1) {
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Execution ?(S)");
position++;
}else{
switch( firstitem ){
case 0:
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Execute Reset ");
if( memsconnect == false){
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Not connect MEMS");
return;
}else{
webcount=(int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2;
if( webcount !=0){
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Running Engine ");
}else{
//シリアルのBUFFERのから読み
while(Serial2.available() !=0 )Serial2.read();
//iNIT CODE CC
Serial2.write(0xCC); // f4=Fault code reset
start_time = millis(); // 開始前の時刻を取得
while(Serial2.available() < 2 ){
if ( (millis() - start_time) > 2000 ) {
break ; // 2000 mS 受信がなければループを抜ける
}
}
if (Serial2.available() != 2 ) {
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("No response0xCC");
return;
}
//Serial2に受信データの結果読み出し(0xCC00)
readdata1= Serial2.read();
readdata2= Serial2.read();
if (readdata1 == 0xCC && readdata2 == 0x00) {
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("HW RESET OK ");
}else{
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("HW RESET NG ");
}
}
}
break;
case 2:
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Execute TRIM ");
break;
case 3:
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Execute Idel SP");
break;
case 4:
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Execute Ig Adv ");
}
}
}else if(position == 2){
if( memsconnect == false){
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Notconnect MEMS");
break;
}else{
webcount=(int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2;
if( webcount !=0){
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Running engine ");
break;
}
}
testitem=NOTEST;
testruning = true;
switch( seconditem ){
case 0:
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Exec Stepping ");
runtestitem=STEPPINGNUM;
break;
case 1:
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Exec Fuelpump ");
runtestitem=FUELPUMPNUM;
break;
case 2:
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Exec AC Relay ");
runtestitem=ACRELAYNUM;
break;
case 3:
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Exec O2Heater ");
runtestitem=O2HEATERNUM;
break;
case 4:
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Exec PTC Relay ");
runtestitem=PTCRELAYNUM;
break;
case 5:
lcd3.setCursor(0,1); //カーソルの移動
lcd3.print("Exec PurgeValve");
runtestitem=PURGEVALVENUM;
break;
}
}
// case THNONE:
default:
if(position != 2)break;
lcd3.setCursor(0,1);
switch (testitem){
case STEPPINGFINISHNG:
lcd3.print("Stepping Error ");
break;
case STEPPINGFINISHOK:
lcd3.print("Stepping OK ");
break;
case FUELPUMPFINISHNG:
lcd3.print("FUELPUMP Error ");
break;
case FUELPUMPFINISHOK:
lcd3.print("FUELPUMP Ok ");
break;
case ACRELAYFINISHNG:
lcd3.print("AC Relay Error ");
break;
case ACRELAYFINISHOK:
lcd3.print("AC Relay Ok ");
break;
case O2HEATERFINISHNG:
lcd3.print("O2 Heater Error");
break;
case O2HEATERFINISHOK:
lcd3.print("O2 Heater Ok ");
break;
case PTCRELAYFINISHNG:
lcd3.print("PTC RELAY Error");
break;
case PTCRELAYFINISHOK:
lcd3.print("PTC RELAY Ok ");
break;
case PURGEVALVEFINISHNG:
lcd3.print("PurgeValveError");
break;
case PURGEVALVEFINISHOK:
lcd3.print("PurgeValve Ok ");
}
}
#endif

#if defined(OLEDESP)
lastTimekey=read_encoder();
OLED1.clearDisplay();
/*debug OLED1.setCursor(0,3*8+1);
OLED1.println(lastTimekey);
OLED1.println(firstitem);
OLED1.println(position);
*/
OLED1.setCursor(0,1);
// OLED1.clearDisplay();
OLED1.println("Please select item");
switch (lastTimekey) {
case KEYRIGHT:
if(position ==0 ){
if(firstitem < 4){
firstitem++;
}
OLED1.print(firstitems[firstitem]);
}else if(position == 1) {
if( seconditem < 5 ) {
seconditem++;
}
OLED1.print(hwtestitems[seconditem]);
}
break;
case KEYUP:
rotaryEncoder.setEncoderValue(500);
t_key.lastcount=500;
if(position != 0) {
position--;
}
testitem=NOTEST;
if (position == 1 )OLED1.print(hwtestitems[seconditem]);
if (position == 0 )OLED1.print(firstitems[firstitem]);
break;
case KEYLEFT:
if(position == 0) {
if( firstitem > 0) {
firstitem--;
}
OLED1.print(firstitems[firstitem]);
}else if(position == 1) {
if( seconditem > 0) {
seconditem--;
}
OLED1.print(hwtestitems[seconditem]);
}
break;
case KEYSELECT:
rotaryEncoder.setEncoderValue(500);
t_key.lastcount=500;
if(position == 0) {
position++;
if( firstitem ==1) {
OLED1.print(hwtestitems[seconditem]);
}else{
OLED1.println(firstitems[firstitem]);
OLED1.print("Execution ?(S)");
}
break;
}else if(position == 1){
if( firstitem ==1) {
OLED1.println(firstitems[firstitem]);
OLED1.print("Execution ?(C)");
position++;
}else{
switch( firstitem ){
case 0:
OLED1.println(firstitems[firstitem]);
OLED1.println("Execute Reset ");
if( memsconnect == false){
OLED1.print("Not connect MEMS");
return;
}else{
webcount=(int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2;
if( webcount !=0){
OLED1.print("Running Engine ");
}else{
//シリアルのBUFFERのから読み
while(Serial2.available() !=0 )Serial2.read();
//iNIT CODE CC
Serial2.write(0xCC); // f4=Fault code reset
start_time = millis(); // 開始前の時刻を取得
while(Serial2.available() < 2 ){
if ( (millis() - start_time) > 2000 ) {
break ; // 2000 mS 受信がなければループを抜ける
}
}
if (Serial2.available() != 2 ) {
OLED1.print("No response0xCC");
return;
}
//Serial2に受信データの結果読み出し(0xCC00)
readdata1= Serial2.read();
readdata2= Serial2.read();
if (readdata1 == 0xCC && readdata2 == 0x00) {
OLED1.print("HW RESET OK ");
}else{
OLED1.print("HW RESET NG ");
}
OLED1.display();
delay(2000);
}
}
break;
case 2:
OLED1.print("Execute TRIM ");
break;
case 3:
OLED1.print("Execute Idel SP");
break;
case 4:
OLED1.print("Execute Ig Adv ");
}
break;
}
}else if(position == 2){
if( memsconnect == false){
OLED1.print("Notconnect MEMS");
break;
}else{
webcount=(int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2;
if( webcount !=0){
OLED1.print("Running engine ");
break;
}
}
testitem=NOTEST;
testruning = true;
switch( seconditem ){
case 0:
OLED1.print("Exec Stepping ");
runtestitem=STEPPINGNUM;
break;
case 1:
OLED1.print("Exec Fuelpump ");
runtestitem=FUELPUMPNUM;
break;
case 2:
OLED1.print("Exec AC Relay ");
runtestitem=ACRELAYNUM;
break;
case 3:
OLED1.print("Exec O2Heater ");
runtestitem=O2HEATERNUM;
break;
case 4:
OLED1.print("Exec PTC Relay ");
runtestitem=PTCRELAYNUM;
break;
case 5:
OLED1.print("Exec PurgeValve");
runtestitem=PURGEVALVENUM;
break;
}
}
// case THNONE:
default:
if (position == 1 ){
if (firstitem == 1 ){
OLED1.println(hwtestitems[seconditem]);
}else{
OLED1.println(firstitems[firstitem]);
OLED1.print("Execution ?(C)");
}
}
if (position == 0 )OLED1.println(firstitems[firstitem]);
if(position != 2)break;
if(testitem == NOTEST && testruning == false && firstitem ==1 ){
OLED1.clearDisplay();
OLED1.setCursor(0,1);
OLED1.println("Please select item");
OLED1.println(firstitems[firstitem]);
OLED1.println(hwtestitems[seconditem]);
OLED1.print("Execution ?(C)");
}
switch (testitem){
case STEPPINGFINISHNG:
OLED1.print("Stepping Error ");
break;
case STEPPINGFINISHOK:
OLED1.print("Stepping OK ");
break;
case FUELPUMPFINISHNG:
OLED1.print("FUELPUMP Error ");
break;
case FUELPUMPFINISHOK:
OLED1.print("FUELPUMP Ok ");
break;
case ACRELAYFINISHNG:
OLED1.print("AC Relay Error ");
break;
case ACRELAYFINISHOK:
OLED1.print("AC Relay Ok ");
break;
case O2HEATERFINISHNG:
OLED1.print("O2 Heater Error");
break;
case O2HEATERFINISHOK:
OLED1.print("O2 Heater Ok ");
break;
case PTCRELAYFINISHNG:
OLED1.print("PTC RELAY Error");
break;
case PTCRELAYFINISHOK:
OLED1.print("PTC RELAY Ok ");
break;
case PURGEVALVEFINISHNG:
OLED1.print("PurgeValveError");
break;
case PURGEVALVEFINISHOK:
OLED1.print("PurgeValve Ok ");
}
}
OLED1.display();
#endif
delay(400);
}
