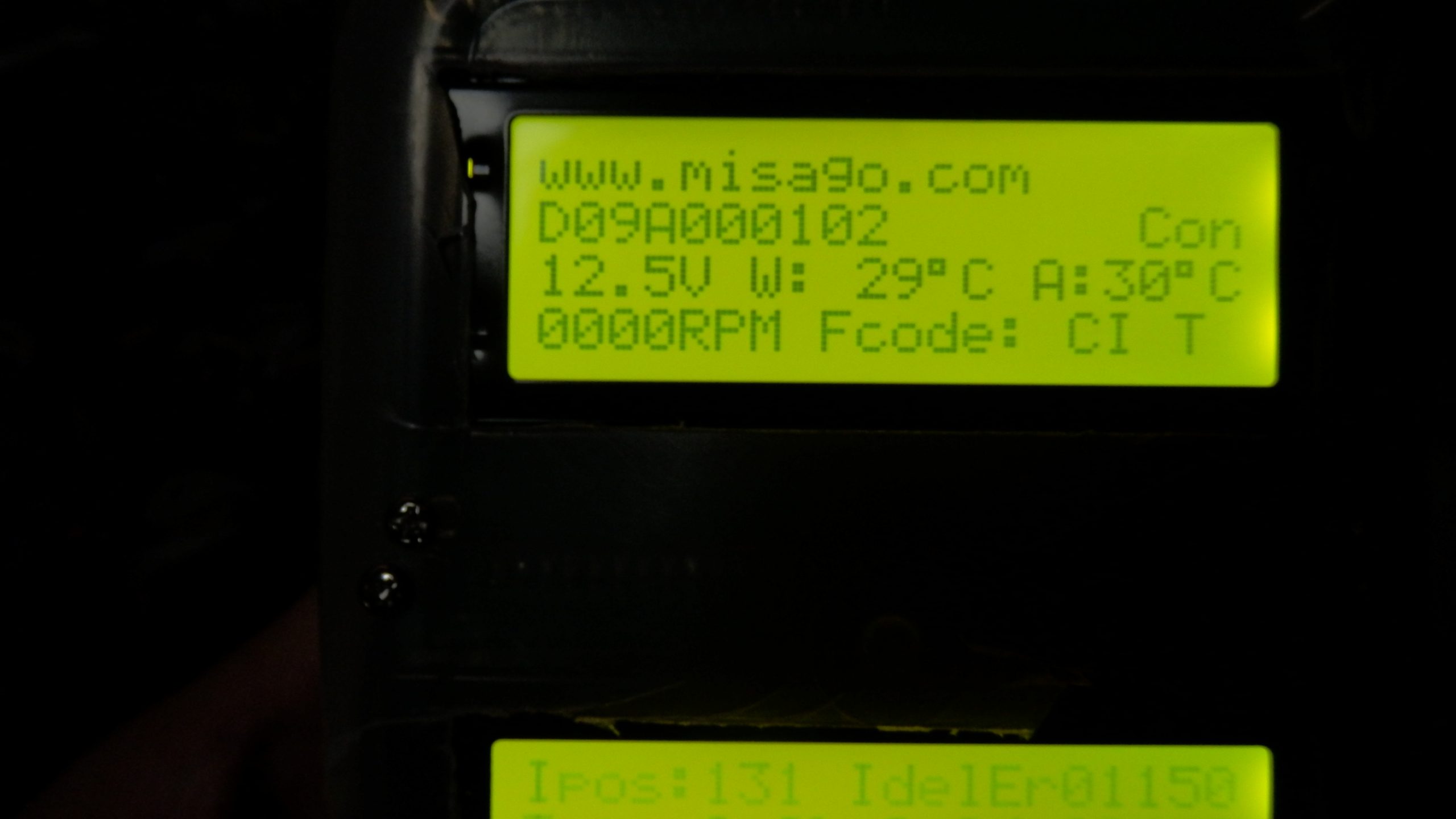

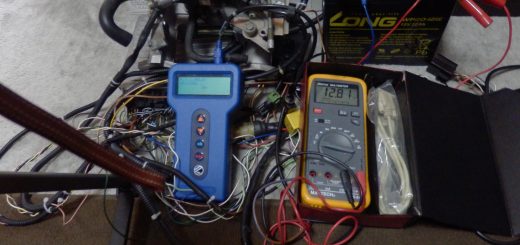

SPI MONITORをATのECUの確認が終わったので追加した。

/*
* This code is created by www.misago.com
*
* All original source code in this repository is Copyright (C) 2024 HATI
*
* For more detail (instruction and wiring diagram), visit https://www.misago.com
*/

#include <LiquidCrystal_I2C.h>
LiquidCrystal_I2C lcd(0x27, 20, 4); // I2C address 0x27, 20 column and 4 rows
LiquidCrystal_I2C lcd2(0x26, 20, 4); // I2C address 0x26, 20 column and 4 rows

uint8_t databuf[64];
int receive_byte;
#define ModelNum 5

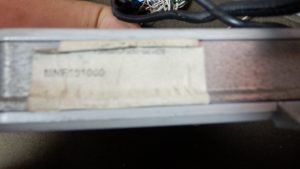

const char MEMSModel[][11] = { "MNE10089 ", "MNE10078 ", "MNE101070 ", "MNE101170 ", "MNE101060 " };
const char MEMScode[][4] = { 0x98, 0x00, 0x00, 0x02, 0x3a, 0x00, 0x02, 0x14, 0x99, 0x00, 0x02, 0x03, 0x99, 0x00, 0x03, 0x03, 0x9a, 0x00, 0x01, 0x02 };

// Dataframe command(0x80)の構造体
struct command80 {
uint8_t commnad;
uint8_t framesize; //including this byte. This should be 0x1C (28 bytes) for the frame described here.
uint8_t enginespeed1; // RPM (16 bits)
uint8_t enginespeed2; // RPM (16 bits)
uint8_t coolanttemperature; //degrees C with +55 offset and 8-bit wrap
uint8_t ambienttemperature; // degrees C with +55 offset and 8-bit wrap
uint8_t intakeairtemperature; //degrees C with +55 offset and 8-bit wrap
uint8_t fueltemperature; //degrees C with +55 offset and 8-bit wrap. This is not supported on the Mini SPi, and always appears as 0xFF.
uint8_t mapsensorvalue; //kilopascals
uint8_t batteryvoltage; //0.1V per LSB (e.g. 0x7B == 12.3V)
uint8_t throttlepotvoltage; //0.02V per LSB. WOT should probably be close to 0xFA or 5.0V.
uint8_t idleswitch; //Bit 4 will be set if the throttle is closed, and it will be clear otherwise.
uint8_t Unknown1; //Probably a bitfield. Observed as 0x24 with engine off, and 0x20 with engine running. A single sample during a fifteen minute test drive showed a value of 0x30.
uint8_t parkneutralswitch; //Zero is closed, nonzero is open.
uint8_t faultcodes1; //On the Mini SPi, only two bits in this location are checked:
// Bit 0: Coolant temp sensor fault (Code 1)
// Bit 1: Inlet air temp sensor fault (Code 2)
uint8_t faultcodes2; //On the Mini SPi, only two bits in this location are checked:
// Bit 1: Fuel pump circuit fault (Code 10)
// Bit 7: Throttle pot circuit fault (Code 16)
uint8_t Unknown2;
uint8_t Unknown3;
uint8_t Unknown4;
uint8_t idleaircontrolmotorposition; //On the Mini SPi's A-series engine, 0 is closed, and 180 is wide open.
uint8_t idlespeed1; //deviation (MSB 16 bits)
uint8_t idlespeed2; //deviation (LSB 16 bits)
uint8_t Unknown5;
uint8_t ignitionadvance; //0.5 degrees per LSB with range of -24 deg (0x00) to 103.5 deg (0xFF)
uint8_t coiltime1; //0.002 milliseconds per LSB (16 bits)
uint8_t coiltime2; //0.002 milliseconds per LSB (16 bits)
uint8_t Unknown6;
uint8_t Unknown7;
uint8_t Unknown8;
};
// Dataframe command(0x7d)の構造体
struct command7d {
uint8_t commnad;
uint8_t framesize; // including this byte (0x1f)
uint8_t Unknown1;
uint8_t throttleangle;
uint8_t Unknown2;
uint8_t airfuelratio; // but often observed to never change from 0xFF
uint8_t Unknown3;
uint8_t lambdasensorvoltage; // 5mV per LSB
uint8_t lambdasensorfrequency; //
uint8_t lambdasensordutycycle; //
uint8_t lambdasensorstatus; // 0x01 for good, any other value for no good
uint8_t loopindicator; //0 for open loop and nonzero for closed loop
uint8_t longtermtrim;
uint8_t shorttermtrim; //1% per LSB
uint8_t carboncanisterpurgevalvedutycycle;
uint8_t Unknown4;
uint8_t idlebaseposition;
uint8_t Unknown5;
uint8_t Unknown6;
uint8_t Unknown7;
uint8_t Unknown8;
uint8_t idleerror;
uint8_t Unknown9;
uint8_t UnknownA;
uint8_t UnknownB;
uint8_t UnknownC;
uint8_t UnknownD;
uint8_t UnknownE;
uint8_t UnknownF;
uint8_t Unknown10;
uint8_t Unknown11;
uint8_t Unknown12;
uint8_t Unknown13;
};
//Errorの取り出し
struct bits1 {
uint8_t coolanttempsensor : 1;
uint8_t inletairtempsensor : 1;
uint8_t b3 : 1;
uint8_t b4 : 1;
uint8_t b5 : 1;
uint8_t b6 : 1;
uint8_t b7 : 1;
uint8_t b8 : 1;
};

struct bits2 {
uint8_t b1 : 1;
uint8_t fuelpumpcircuit : 1;
uint8_t b3 : 1;
uint8_t b4 : 1;
uint8_t b5 : 1;
uint8_t b6 : 1;
uint8_t b7 : 1;
uint8_t throttlepotcircuit : 1;
};

union body {
uint8_t frame80[29];
command80 frame;
} data;

union body2 {
uint8_t frame7d[32];
command7d frame;
} data2;

union body3 {
uint8_t faultcode1;
struct bits1 b;
} error1;

union body4 {
uint8_t faultcode2;
struct bits2 bb;
} error2;

int Readbyte_MEMS(int *result) {
int Initerror = false, count = 0;
while (!Serial2.available()) {
count = count + 1;
;
if (count > 10000) {
Initerror = true;
return (Initerror);
}
}
//Serial2に受信データがあるか
*result = Serial2.read(); //Serial2データを読み出し
return (Initerror);
}

int Readmulti_MEMS(void) {
int i, Initerror = false, count;
// String str;

count = 0;
receive_byte = 0;
do {
receive_byte = Serial2.available();
count = count + 1;
;
if (count > 10000) {
break;
}
} while (receive_byte < 80);

if (receive_byte == 0) {
Initerror = true;
return (Initerror);
}
//Serial2に受信データがあるか
for (i = 0; i < receive_byte; i++) {
databuf[i] = (uint8_t)Serial2.read();
}
databuf[receive_byte] = 0;
}

void StrtoHEX(void) {

int i;

for (i = 0; i < receive_byte; i++) {
Serial.printf("%02X", databuf[i]);
}
}

void InitMEMS(void) {
int i, j, data, count = 0, result, retry = 0;

// ゴミデータの読みだし
while (Serial2.available() != 0) {
Serial2.read();
}
//iNIT CODE 00
Serial2.write(0);

Readbyte_MEMS(&data);
// Serial.println(data);

//iNIT CODE F9
Serial2.write(0xF9);

Readbyte_MEMS(&data);
// Serial.println(data);

//iNIT CODE CA
Serial2.write(0xCA);

Readbyte_MEMS(&data);
// Serial.println(data);

//iNIT CODE 75
Serial2.write(0x75);

Readbyte_MEMS(&data);
// Serial.println(data);

//iNIT CODE D0
Serial2.write(0xd0);
delay(100);

Readmulti_MEMS();
// StrtoHEX( );
// Serial.println();

lcd.setCursor(0, 1);
// lcd.printf("TYPE=");

//コネクターを後からつけて初期が終わっていなくて、おかしくなってしまう対策。4回初期化をTry
result = false;
count = 0;

do {
for (i = 0; i < receive_byte; i++) count += databuf[i];
if (count == 0) { //retry
delay(100);
//iNIT CODE CA
Serial2.write(0xCA);
Readbyte_MEMS(&data);
//iNIT CODE 75
Serial2.write(0x75);
Readbyte_MEMS(&data);
//iNIT CODE D0
Serial2.write(0xd0);
delay(100);
Readmulti_MEMS();
for (i = 0; i < receive_byte; i++) count += databuf[i];
retry++;
}
} while ((count == 0 && retry < 4));
//Medel表示
for (j = 0; j < ModelNum; j++) {
count = 0;
for (i = 0; i < receive_byte; i++) {
if (i == 0) continue;
if (MEMScode[j][i - 1] == databuf[i]) {
count++;
if (count == (receive_byte - 1)) {
lcd.printf("%s", MEMSModel[j]);
// Serial.println("I=%d j=%d"i,j);
result = true;
break;
} else {
// Serial.printf("I=%d j=%d\n",i,j);
continue;
}
}
}
if (result == true) {
break;
}
}
//Medelが見つからなかったときは、コード表示
if (j == ModelNum) {
lcd.setCursor(0, 1);
for (i = 0; i < receive_byte; i++) lcd.printf("%02X", databuf[i]);
}
}

void setup() {

// シリアル初期化
Serial.begin(115200);
while (!Serial)
;
Serial2.begin(9600, SERIAL_8N1, 17, 16); //ピンを指定して使用する場合
while (!Serial2)
;

lcd.init(); // initialize the lcd
lcd.backlight();
lcd2.init(); // initialize the lcd
lcd2.backlight();

lcd.setCursor(0, 0); // move cursor the first row
lcd.print("www.misago.com"); // print message the fourth row
// lcd2.setCursor(0, 0); // move cursor the first row AT Second LCDS
// lcd2.print("Hello!!"); // print message the fourth row

Serial.println("Init Start");

InitMEMS();

lcd.setCursor(17, 1);
lcd.printf("Dis");

Serial.println("Init end");
delay(5000);
}

int CheckConnect(void) {
int result = false;

//iNIT CODE F4
Serial2.write(0xF4); // f4=nop
delay(50);
Readmulti_MEMS();
// StrtoHEX( str , receive_byte );
// Serial.println();
if (databuf[0] == 0xF4 && databuf[1] == 0x00) {
result = true;
}
return (result);
}

void CheckFaultcode(void) {

lcd.setCursor(8, 3);
lcd.printf("Fcode:");

//Fault codeの確認
if ((int)data.frame.faultcodes1 == 0 && (int)data.frame.faultcodes2 == 0) {
lcd.setCursor(15, 3);
lcd.printf("NoErr");
return;
}
error1.faultcode1 = data.frame.faultcodes1;
if (error1.b.coolanttempsensor != 0) {
lcd.setCursor(15, 3);
lcd.printf("C ");
}
if (error1.b.inletairtempsensor != 0) {
lcd.setCursor(16, 3);
lcd.printf("I ");
}
error2.faultcode2 = data.frame.faultcodes2;
if (error2.bb.fuelpumpcircuit != 0) {
lcd.setCursor(17, 3);
lcd.printf("F ");
}
if (error2.bb.throttlepotcircuit != 0) {
lcd.setCursor(18, 3);
lcd.printf("T ");
}
}

void loop() {
int i;
// MEMSとの接続確認
if (CheckConnect() == true) {
lcd.setCursor(17, 1);
lcd.printf("Con");

//データーフレーム(0x80)の読み出し
Serial2.write(0x80); // 80=Dataframe
delay(100);
Readmulti_MEMS();
// StrtoHEX();
// Serial.println();
// Serial.print("LOOP:eceive_byte=");
// Serial.println(receive_byte);
for (i = 0; i < receive_byte; i++) { data.frame80[i] = databuf[i]; }
//MEMSの電圧表示
lcd.setCursor(0, 2);
lcd.printf("%4.1fV", 0.1 * (float)data.frame.batteryvoltage);
//MEMSの環境温度
lcd.setCursor(6, 2);
lcd.printf("W:%3d", (int)data.frame.intakeairtemperature - 55);
lcd.setCursor(11, 2);
lcd.write(0xdf);
lcd.write('C');
//MEMSの水温
lcd.setCursor(14, 2);
lcd.printf("A:%2d", (int)data.frame.coolanttemperature - 55);
lcd.setCursor(18, 2);
lcd.write(0xdf);
lcd.write('C');
//MEMSが管理しているエンジン回転数
lcd.setCursor(0, 3);
lcd.printf("%04dRPM", (int)(data.frame.enginespeed1 * 256) + (int)data.frame.enginespeed2);
CheckFaultcode();
//Idel position
lcd2.setCursor(0, 0);
lcd2.printf("Ipos:%03d", (int)data.frame.idleaircontrolmotorposition);
//Idel speed
lcd2.setCursor(9, 0);
lcd2.printf("IdelEr%05d", (int)data.frame.idlespeed1 * 256 + (int)data.frame.idlespeed2);
//スロットル開度
lcd2.setCursor(0, 1);
lcd2.printf("Tp:%5.1f", (float)(data.frame.throttlepotvoltage) / 250 * 100); //Throttle pot voltage, 0.02V per LSB. WOT should probably be close to 0xFA or 5.0V.
lcd2.write('%');
//進角
lcd2.setCursor(10, 1);
lcd2.printf("IgAd:%05.1f", -24.0 + 0.5 * (float)data.frame.ignitionadvance); //Ignition 0.5 degrees per LSB with range of -24 deg (0x00) to 103.5 deg (0xFF)
//Coil time
// lcd2.setCursor(0, 2);
// lcd2.printf("Ctime:%4.1f",0,002*((float)data.frame.coiltime1*256+ (float)data.frame.coiltime2)); //Ignition 0.5 degrees per LSB with range of -24 deg (0x00) to 103.5 deg (0xFF)
//データーフレーム(0x7D)の読み出し
Serial2.write(0x7d); // 80=Dataframe
delay(100);
Readmulti_MEMS();
for (i = 0; i < receive_byte; i++) { data2.frame7d[i] = databuf[i]; }

//Map sensoe
lcd2.setCursor(0, 2);
lcd2.printf("Map:%03d", (int)data.frame.mapsensorvalue);
// lambda_voltage(mV)
lcd2.setCursor(8, 2);
lcd2.printf("Lamda:%4dmV", 5 * (int)data2.frame.lambdasensorvoltage); // 5mV per LSB
//Closeloop:0 for open loop and nonzero for closed loop
lcd2.setCursor(0, 3);
lcd2.printf("Cloop:");
if (data2.frame.loopindicator == 0) {
lcd2.setCursor(6, 3);
lcd2.printf("Open ");
} else {
lcd2.setCursor(6, 3);
lcd2.printf("Close");
}
//Short_trim
lcd2.setCursor(11, 3);
lcd2.printf("Trim:%3d%", data2.frame.shorttermtrim); //1% per LSB
} else {
lcd.setCursor(17, 1);
lcd.printf("Dis");
for (i = 2; i < 4; i++) {
lcd.setCursor(0, i);
lcd.printf(" ");
}
for (i = 0; i < 4; i++) {
lcd2.setCursor(0, i);
lcd2.printf(" ");
}
InitMEMS();
}
delay(500);
}
